GBC Module 11

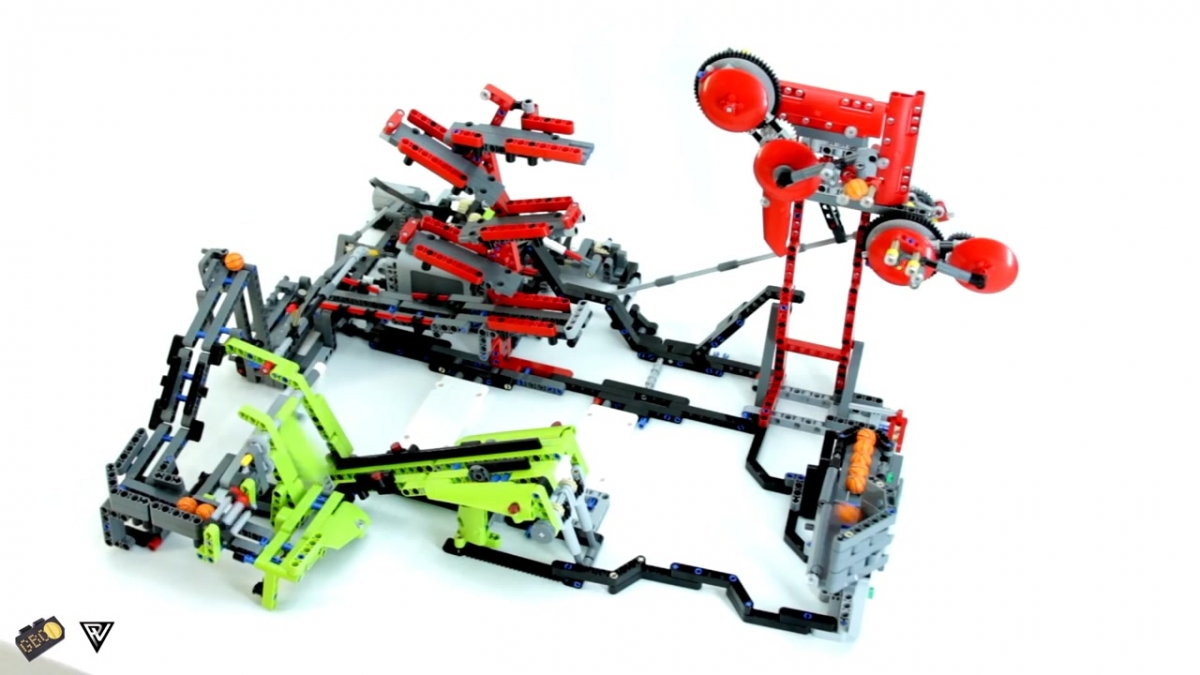

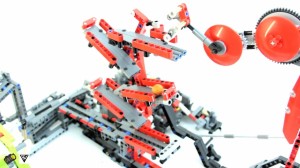

GBC Module 11 is a collaboration project between Josh DaVid and PV-Productions. Consisting of 5 modules, this GBC transports the balls throughout different mechanisms creating a continuous Loop. The modules are the Cardan Gears, Zig Zag Down, Scissor Lift, and Ball Shooter. This GBC is entirely built using only parts from the CLAAS XERION 5000 TRAC VC and uses 90% of all the pieces that come with it. The whole machine is powered by one LEGO motor which comes with this LEGO 42054 Set.

Original design by: PV-Productions + Josh DaVid Number of parts: 1483
Original Blog Article (English): here Complexity for building:
Price for Building: €€€, average

THIS GBC MODULE IN VIDEOS


BUILD THIS MODULE

PDFDownload PDF Building Instructions

THIS GBC MODULE IN PICTURES

PLANET GBC FORUM FOR THIS MODULE

Exchange tips, advices and ideas about this GBC module on PLANET GBC Forum

3 comments

  1. Really disappointed that the instructions are no available to buy. I reckon this is their best GBC module derived from a set. And yes I did get in touch with them direct.

    That said, I’m reverse engineering the model from the photos and videos and building my own version. I don’t have the set but pretty much have all of the parts. I’m not restricted to the parts from the set so can make a few changes to make the model a bit more sturdy.

  2. Why is this Module 11 no longer available for download at PV Productions? The picture for the all in one purchase at PV Prod still shows it but doesn’t list it to be included what I get.

    1. hi Paul,

      I don’t really know why these instructions have disappeared from PV-Productions website. Feel free to contact them, they will have a reason (maybe it’s a typo/bug on their side)
