Gear Rack Elevator

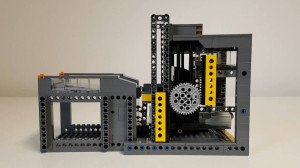

Gear Rack Elevator is a very smart LEGO Great Ball Contraption module from the GBC builder mickthebricker. This LEGO ball machine works like a three steps stepper but where each stage is relying on a distinct mechanism. The first stepper from this cool LEGO ball machine is a non-motorized one: it carries GBC balls from the entry bin to the main ramp of the module and is only actioned by the main ramp. The second and the third steppers are constituting the main mechanism of the GBC module. A central block underneath the exit ramp is moving up and down these two steppers, keeping a perfect synchronization thanks to the LEGO Technic racks located on each side of the LEGO GBC build. This marble machine is capable to cope with a very large number of balls. Reproduce it thanks to building instructions and ready to build kit both available on Planet GBC.

Original design by: mickthebricker

Number of parts: 669

Complexity for building:

Price for Building: €€€, average

WATCH THIS LEGO GBC MODULE IN ACTION

Gear Rack Elevator, on mickthebricker YouTube channel


Advertisement

BUY THIS GBC MODULE AS A SET

Buy Gear Rack Elevator as a Ready-to-Build LEGO set

Gear Rack Elevator– from mickthebricker

• Set with ALL bricks required
• 100% Genuine LEGO bricks
• Price includes Building Instructions
• Available on our partner website BuildaMOC.com

 169,00€

Note: picture illustrating the presented product is given as an indication to help you in your choice and is not contractual

BUILD THE LEGO MARBLE RUN MACHINE GEAR RACK ELEVATOR

Gear Rack Elevator – from mickthebricker Building Instructions + Parts List 14,00€  12,00€

>> More information << Less information The package contains: Building Instructions to reproduce this GBC Module, in PDF format, full HD format (241 pages) Building Instructions are immediately available after purchase List of LEGO parts required to build the module (Bricklink upload, visual inventory within instructions) The package does NOT contain: GBC Balls (read “How to get GBC balls” article to know how to procure these balls) LEGO parts to build the module
