Rotating Platform

The Rotating Platform module, created by Joel Sloan is inspired from a rotary dairy platform. Balls are taken up to the loading ramp by a simple conveyor. A flap lets one or two balls fall onto the platform which then takes them around to the exit ramp. A rail holds the platform in place until it reaches the ramp where it then drops, releasing the balls onto the ramp and the next module. Thanks to Joel Sloan building instructions, you can reproduce this very nice GBC module— Description provided by Joel Sloan – thanks to him —

Original design by: Joel Sloan Number of parts: 1428
Complexity for building:
Price for Building: €€€€, expensive

THIS GBC MODULE IN VIDEOS

Rotating Platform module at Brickvention 2019 (Beyond The Brick video), visible at 26min03s

BUILD THIS MODULE

PDF Download PDF Building Instructions

GET THE BRICKS YOU NEED TO BUILD THIS MODULE

BrickLink XML format to upload required parts in BrickLink Wanted List

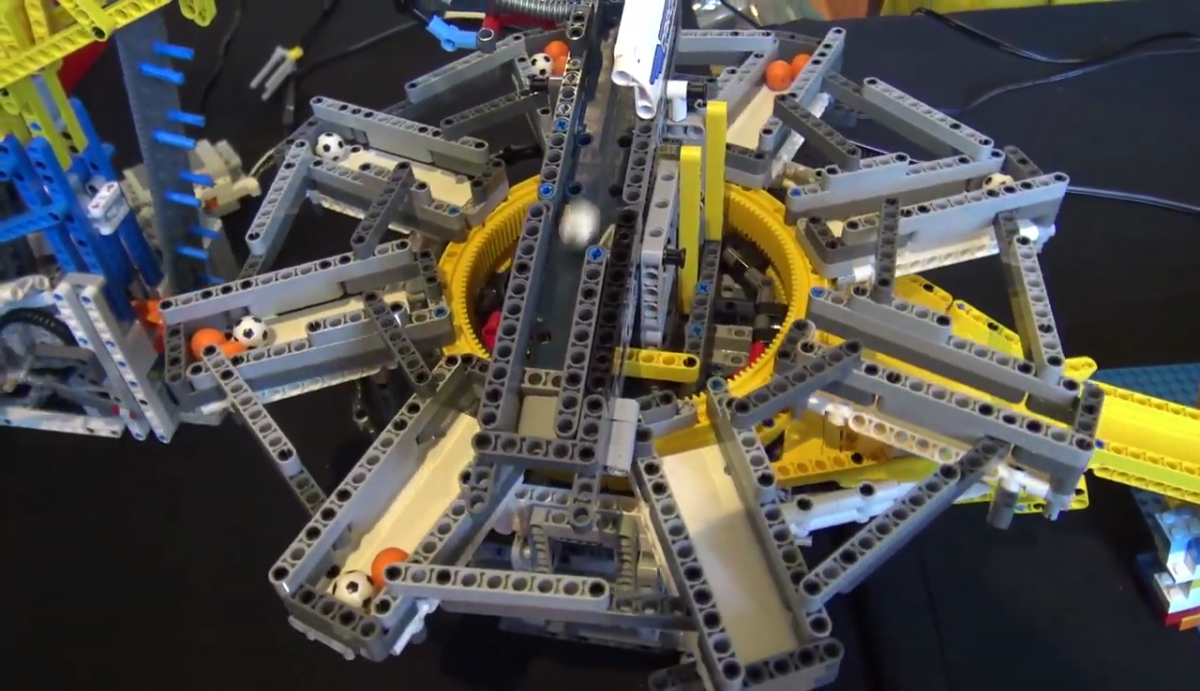

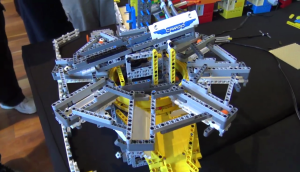

THIS GBC MODULE IN PICTURES

PLANET GBC FORUM FOR THIS MODULE

Exchange tips, advices and ideas about this GBC module on PLANET GBC Forum

2 comments

  1. Does anyone know which steps use part43093 and which steps use part 3749? Any help in letting me know what steps use which of these two parts would be greatly appreciated.

  2. I just finish building this. With a few tweaks it runs very good. I made one change to help the door close more smoothly after it lets the balls go. In steep 156 I replaced PN 11947 (panel fairing #22) with PN 25214 (brick round, 1X1 d., 90 degrees elbow). Its much smoother when the door folds up. Thanks for sharing this, its a great build.
